KAN-therm SMART software update

The latest version of the software is among others improved algorithms of controlling heating as well as many new  features that make operation of the entire KAN-therm SMART system more efficient..

Available versions of the terminal block and method of identification

The terminal blocks Smart in KAN-therm system available in two versions:
  • With software on the memory card
  • With software in the device’s internal memory
Terminal blocks produced after 03.03.2014 have built-in internal memory.

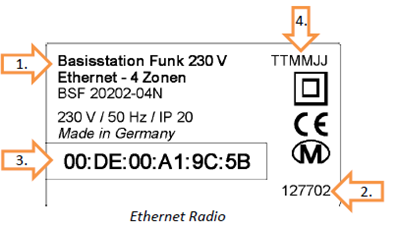

The date of production you can check on the identification plate of the terminal block (item 4).






Check the version of software

Current version of software of the terminal block KAN-therm SMART can be checked from the level of the thermostat or from Web browser (by connecting the computer to the terminal block KAN-therm SMART).

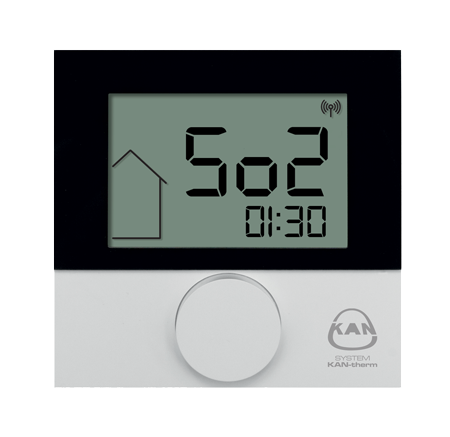

In the thermostat menu   choose the parameter "So2".

Numbers below represent the software version eg.: in picture below we have version 1.30

The software version can also be checked via connecting the computer to the terminal block – see manuals of terminal block KAN-therm SMART.

The software version you can read by checking parameter „SW” (located on the right side of the browser).


If software is in a lower version than available update on a website you have to update it in accordance with the instruction below.

Instruction of software update of the terminal block with software
on  SD card (blocks with SD card):

1. Disconnect the terminal block from a power source
2. Remove the card
3. Make backup of all files from the card
4. Replace files on the card on  files downloaded from  the website KAN
5. Insert the card into the terminal block
6. Connect the terminal block to a power source
7. The terminal block updates automatically (about 5 min). Do not interrupt the update process.
8. During the update process all diodes are off. Update is done when the terminal block will restart automatically (all diodes start blinking) and then returns to normal operation.



WARNING! Correct work of the terminal block is only possible when the card is in the terminal block all the time.

Instruction of software update of the terminal block with software
inside the device (blocks with built-in memory):
1. Record to SD card update files downloaded from the website KAN (using card SanDisk is recommended)
2. Disconnect the terminal block from a power source
3. Insert the card into the terminal block
4. Connect the terminal block to a power source
5. The terminal block updates automatically (about 5 min). Do not interrupt the update process
6. During the update process all diodes are off. Update is done when the terminal block will restart automatically (all diodes start blinking) and then returns to normal operation.
7. After the update you can remove SD card, bearing in mind that during the card inserting and removing the terminal block should be off.


WARNING! To update next block start again from step 1, because during update process 2 files will be permanently removed from SD card.

After the update, check again software version in accordance with instructions above.
