KAN-therm: PPSU directly fixed tap connector




PPSU directly fixed tap connector

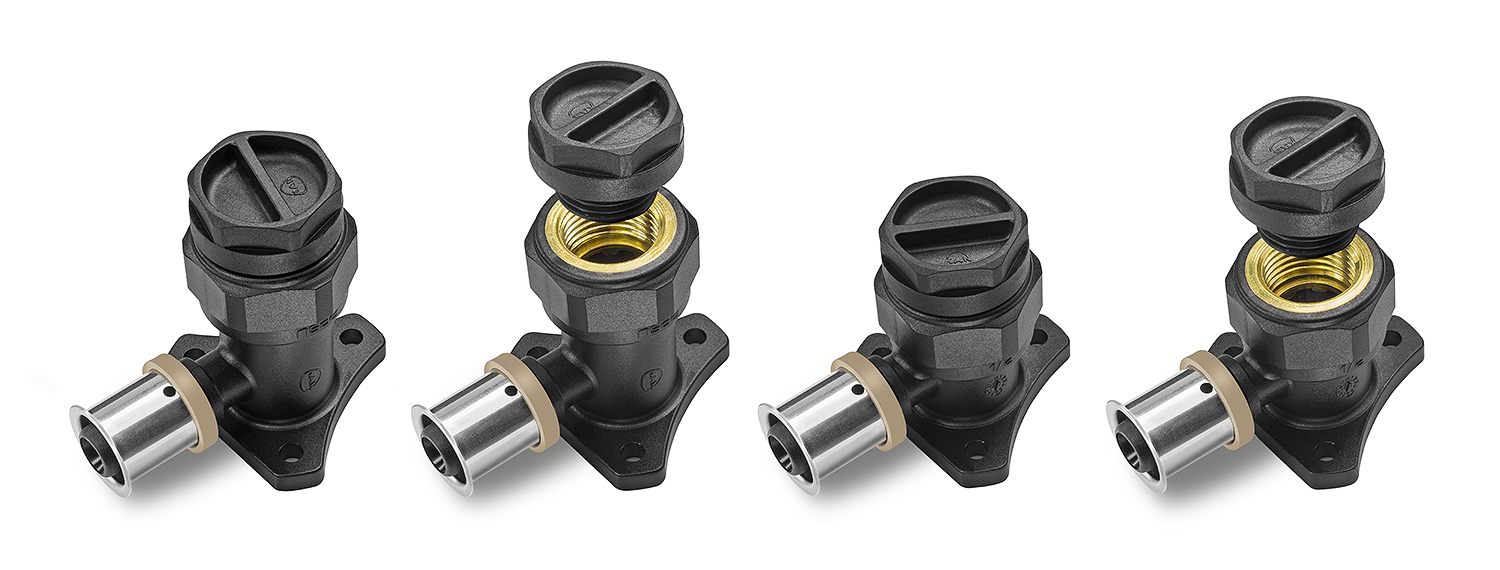

We are glad to introduce you to KAN-therm Press directly fixed PPSU tap connectors.They will be available in two options - short and long.

In KAN-therm Catalogue, these KAN-Press System elements will be available under the codes:

  • PPSU directly fixed tap connector – short   16x2,0 Rp ½”     code: 1009286021
  • PPSU directly fixed tap connector – long     16x2,0 Rp ½     code: 1009286022



  • PPSU directly fixed tap connector – short   20x2,0 Rp ½ code 1009286023
  • PPSU directly fixed tap connector – long   20x2,0 Rp ½ code 1009286024



All connectors are made with high quality materials. They may be used:

  • in traditional method – attached directly to building partition or via metal mounting plate;
  • in dry method – only while utilizing metal mounting plate (see below)

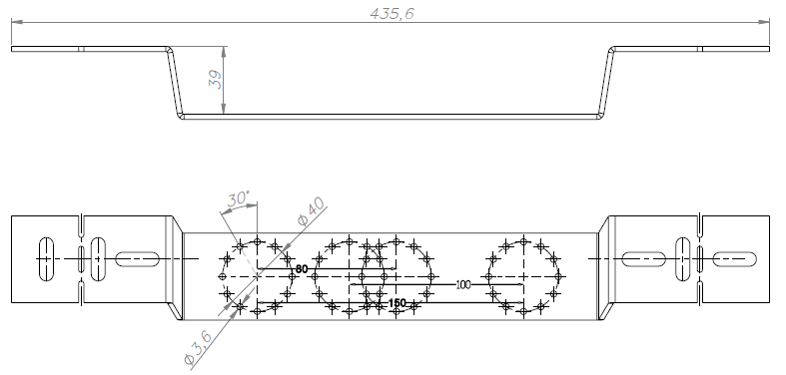

Metal mounting plate with offset 80-100-150 mm             code: 1700210025
