System KAN-therm Steel & Steel Sprinkler
The steel system — System KAN-therm Steel and Steel Sprinkler made of galvanized carbon steel — has been complemented by a Press union with internal thread.
In our Catalogue, this element is featured as:
22xRp1 Press union with internal thread
— catalogue code: 6302715 (1509044007)
This union allows to establish a threaded connection, thanks to which a number of additional elements may be connected to the installation, e.g.: shut-off, as well as control and measurement fittings, etc.
System KAN-therm Surface Heating
The offer of System KAN-therm Surface heating has been supplemented with additional elements of System KAN-therm BASIC+ automatic control system.
This time, the system has been equipped with additional temperature sensors, with the so-called "hidden" setting. They enable control and proper operation of the heating system, without the possibility of unauthorized persons tampering with temperature setting. Such sensors are very popular in public utility investments, schools, kindergartens, hospitals or hotels.
The offer includes several variants of these sensors, depending on the requirements and specificity of an installation:
Temperature sensor with set point: heating, 230 V — catalogue code: 1802265131
Temperature sensor with set point: heating, 24 V — catalogue code: 1802265132
Temperature sensor with set point: heating, 230 V — catalogue code: 1802265133
Temperature sensor with set point: heating, 24 V — catalogue code: 1802265134
System KAN-therm Push / Push Platinum
Our offer features a very peculiar, but practical "adapter", allowing for direct connection of two systems, Push/Push Platinum with Steel & Inox, using flush mounted connections and a sliding sleeve (Push) technique. This is a very convenient solution when it is necessary to make such a transition/connection in a wall or floor structure — or in other words: in a layer of concrete.
In our Catalogue, the element is featured as: "Push / Steel & Inox transition connector” and is available in three different diameter variants:
Transition connector Push 18x2 / Steel & Inox 22
– catalogue code: 1109042039
Transition connector Push 25x3,5 / Steel & Inox 28
– catalogue code: 1109042040
Transition connector Push 32x4,4 / Steel & Inox 35
– catalogue code: 1109042041
In addition, the KAN-therm Push and Push Platinum system offer has been supplemented by a whole range of additional brass couplings:
Brass tee Push 18x2,5/18x2,5/18x2,5
– catalogue code: 1109257070
Brass tee Push 25x3,5/18x2,5/25x3,5
– catalogue code: 1109257071
Brass tee Push 25x3,5/25x3,5/18x2,5
– catalogue code:1109257072
Brass tee Push 25x3,5/18x2,5/18x2,5
– catalogue code: 1109257073
18x2,5 Push brass elbow – catalogue code: 1109068039
25x3,5 Push brass elbow – catalogue code: 1109068040

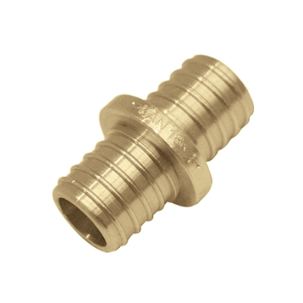

25x3.5/18x2.5 Push brass connector – catalogue code: 1109042042
System KAN-therm PP
This plastic installation system has been equipped with a new practical element — a half-union female stub connection.
In the catalogue, the element is featured as: "Female stub PP connection half-union"
and is available in three different configurations:
20x1/2" female stub PP connection half-union
— catalogue code: 1209271006
20x3/4” female stub PP connection half-union
– catalogue code: 1209271007
25x3/4” female stub PP connection half-union
– catalogue code: 1209271008
The construction of the coupling enables establishment of a screwed, removable union. This is a very important advantage, making it possible to establish dismountable connections. Undeniable popularity of this element’s application is the possibility of simple connection of polypropylene installation directly to a radiator or a radiator valve. The construction of the coupling features its own O-ring sealing, so that no additional sealing elements are required to establish the connection. This advantage provides you with even more convenience and safety at work.
Click here and browse and download the .pdf version of KAN-therm Catalogue
