KAN-therm: Pipes



Pipes

From the System KAN-therm PP Green you can select six kinds of pipes differing in the wall thickness and the design (compound pipes):

All kinds of pipes are delivered in straight sections 4 m long.

To get more technical details click the type of a pipe you need.

System KAN-therm PP Green pipes (and connectors) are made of a PP-R/PP-RCT high-quality polypropylene.

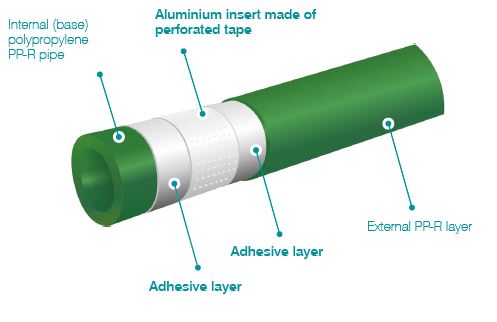

In terms of the design there are two kinds of pipes: uniform (homogenous) and combined pipes (Stabi Al and Glass), characterized by their smaller thermal expansion. KAN-therm PP Stabi Al compound pipes consist of a uniform base pipe of the PP-R polypropylene surrounded by a coating of a perforated aluminium strip covered in addition by a protecting layer. For a better bonding of the aluminium layer with the polypropylene special binding glue layers are applied.

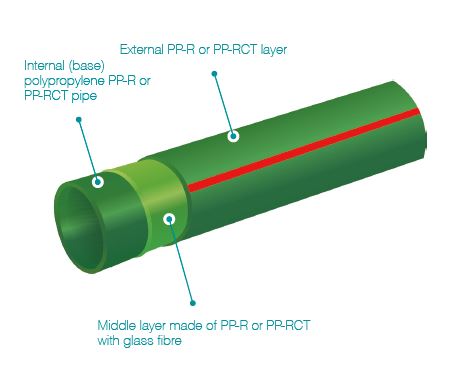

The design of KAN-therm PP Glass pipes is multi-layered. The glass fibre reinforced middle layer (40% of the pipe wall thickness) results in a high pipe strength and its small thermal expansion.

In diameter range above 110 mm, pipes are made of beta type random polypropylene copolymer (PP-RCT) which used to be marked as Type 4.
